PLC-controlled Vertical Shaft Quenching Machine And 100KW Induction Heating Equipment.

Brand Name : OURUIDA

Model Number : ORD-1500MM

Certification : CE ,ISO, ROHS,GSG

Place of Origin : FO SHAN, CHINA

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000SETS /Month

Delivery Time : 3-15days

Packaging Details : Export Wooden box Packaging

Inductionheating machine : 100KW

Voltage : 3 phase 340--480v, 50/60HZ,

Quenching Depth : 2-3.5mm /Depends on your requirements to make it

Resonance : Series Resonance

Cooling System : Water Cooled

Frequency : 10~50KHZ

Quenching Hardness : 58-63HRC

Work Principle : Electromagnetic Induction Heating

Control Model : PLC-Control

Cooling Water Flow : 20L/min

Item : Quenching equipment/Hardening machine

Work Diameter : Shaft, Roll: 1-1500mm Gear: 500MM

Contact Now

PLC-controlled Vertical Shaft Quenching Machine And 100KW Induction Heating Equipment.

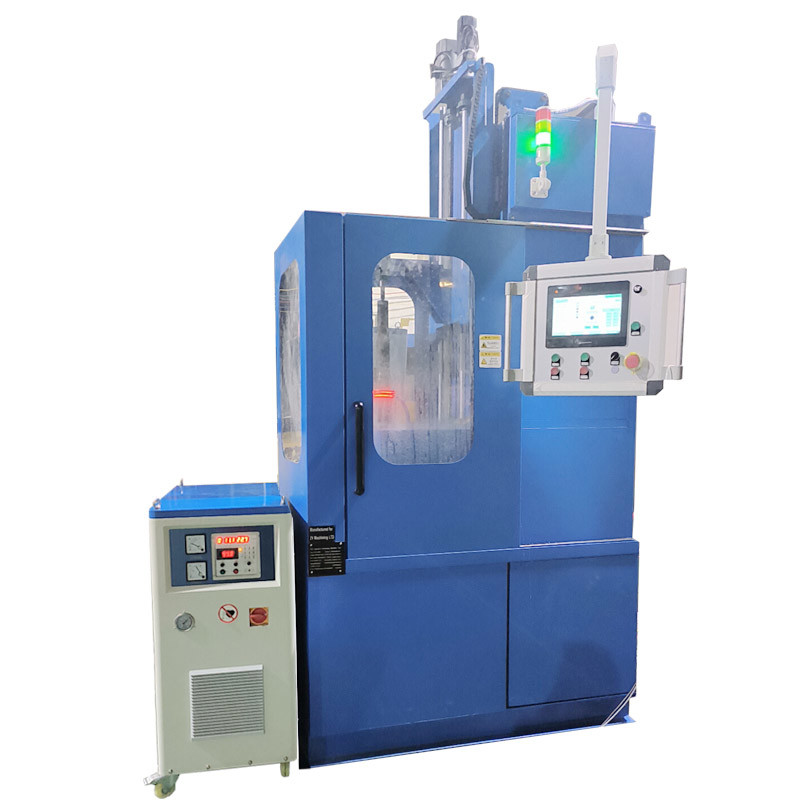

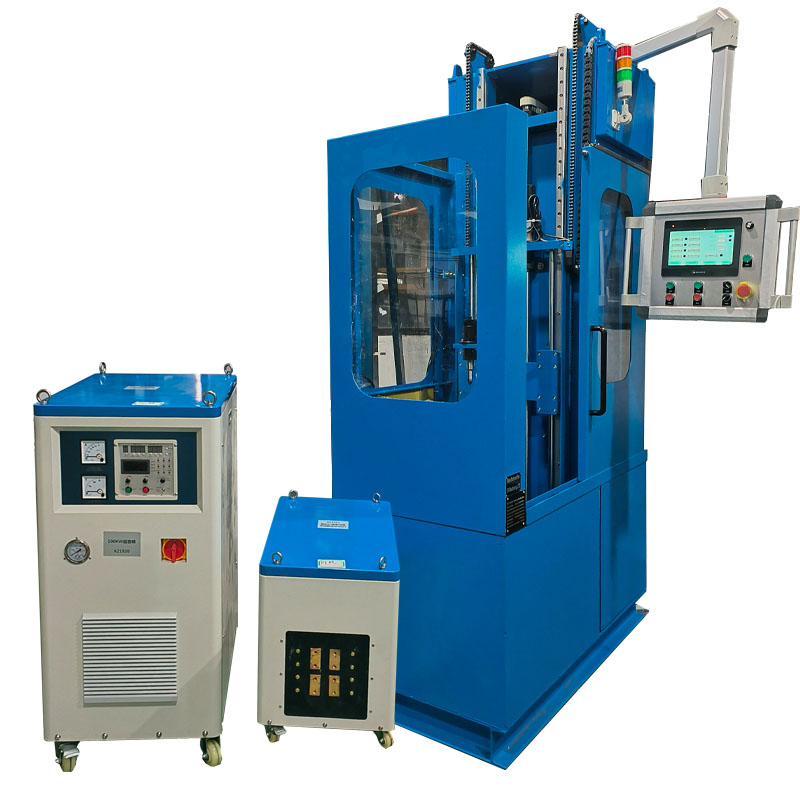

Induction Hardening machine : PLC-controlled vertical shaft quenching machine and 100KW induction heating equipment.

Induction hardening uses induced heat and rapid cooling (quenching) to increase the hardness and durability of steel. Induction is a no-contact process that quickly produces intense, localized and controllable heat. With induction, only the part to be hardened is heated. Optimizing process parameters, such as heating cycles, frequencies and coil and quench design, result in the best possible outcomes.

PLC-controlled Vertical Shaft Quenching Machine And 100KW Induction Heating Equipment.

Induction Hardening machine Applications :PLC-controlled vertical shaft quenching machine and 100KW induction heating equipment.

Induction is used to harden numerous components. Here are just a few of them: gears, crankshafts, camshafts, drive shafts, output shafts, torsion bars, rocker arms, CV joints, tulips, valves, rock drills, and slewing rings, as well as inner and outer races:

PLC-controlled Vertical Shaft Quenching Machine And 100KW Induction Heating Equipment.

Induction Hardening machine Benefits : PLC-controlled vertical shaft quenching machine and 100KW induction heating equipment.

Induction hardening boosts throughput. It is an extremely fast and repeatable process that integrates easily into production lines. With induction it is usual to treat individual workpieces. This ensures each separate workpiece is hardened to its own precise specifications.The optimized process parameters for each workpiece can be stored on your servers. Induction hardening is clean, safe and typically has a small footprint. And because only the part of the component to be hardened is heated, it is extremely energy-efficient
Induction Hardening machine Dates :PLC-controlled vertical shaft quenching machine and 100KW induction heating equipment.
PLC-controlled Vertical Shaft Quenching Machine And 100KW Induction Heating Equipment.

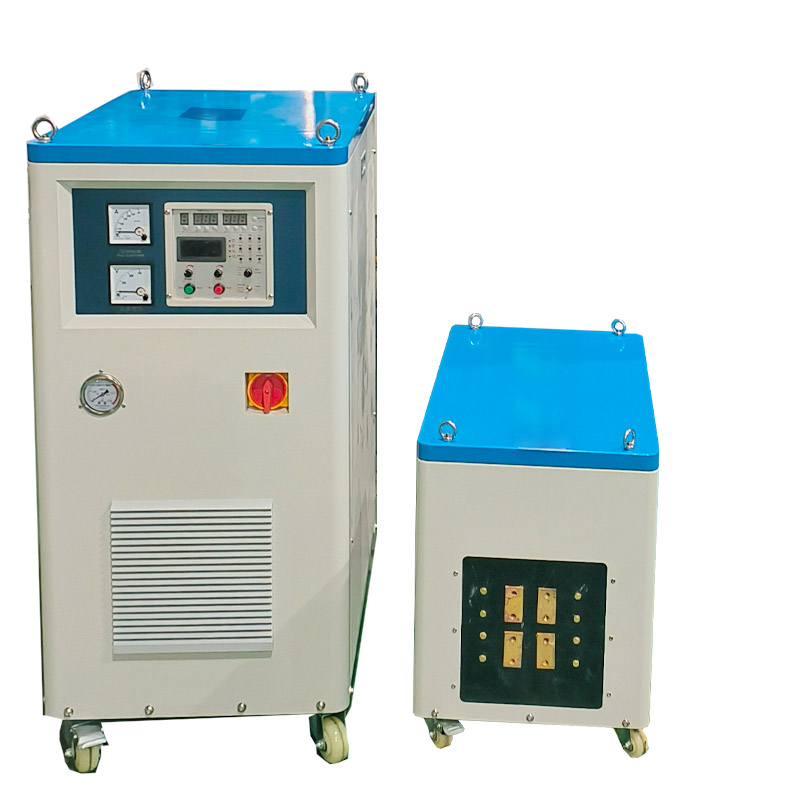

Type SF-100KW
Work Power 3*380v/415v/440v/480v 50-60hz
The range of operating voltage 340-430V AC
Output power 100KW
Input current 150A
Fluctuating frequency 10-40khz
Timing (Heat time,Retain time,Cool time) 1-9999S
The flow rate of cooling water 0.15 Mpa 25L/Min
Water temperature protection point 40centidegree
Duty cycle 100% (40degree room temperature)
Weight Mainparts:138Kg Transformer:80kg
